MMF-300(A) Series, MDF-300(A)
Addressable Monitor Modules |
|
Addressable Devices |
|
General |
intelligent control panels to suit a variety of applications. Monitor modules are used to supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations, or monitor and power a circuit of two-wire smoke detectors
(MMF-302).
MMF-300 is a standard-sized module (typically mounts to a 4" [10.16 cm] square box) that supervises either a Class A (Style
D) or Class B (Style B) circuit of dry-contact input devices.
MMF-301 is a miniature monitor module (a mere 1.3" (3.302 cm) H x 2.75" (6.985 cm) W x 0.5" (1.270 cm) D) used to supervise a Class B (Style B) circuit of dry-contact input
devices. Its compact design allows the MMF-301 to often be mounted in a single-gang box behind the device it monitors.
|
|
MMF-302 is a standard-sized module used to monitor and supervise compatible two-wire, 24 volt, smoke detectors on a Class A (Style D) or Class B (Style B) circuit.
MDF-300 is a standard-sized dual monitor module used to monitor and supervise two independent two-wire Style B (Class B) dry-contact initiating device circuits (IDCs) at two separate, consecutive addresses in intelligent, two-wire systems.
LiteSpeed™ is a communication protocol developed by Fire•Lite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs. |
|
|

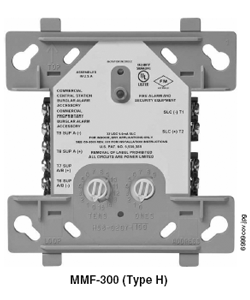

MMF-300 Monitor Module |
» |
Built-in type identification automatically identifies this device as a monitor module to the control panel. |
» |
Powered directly by two-wire SLC loop. No additional power required. |
» |
High noise (EMF/RFI) immunity. |
» |
SEMS screws with clamping plates for ease of wiring. |
» |
Direct-dial entry of address: 01 – 159 on MS-9600 series panels, 01 – 99 on other compatible systems. |
» |
LED flashes during normal operation and latches on steady to indicate alarm. |
|
|
The MMF-300 Monitor Module is intended for use in intelligent, two-wire systems, where the individual address of each module is selected using the built-in rotary switches. It provides either a two-wire or four-wire fault-tolerant Initiating Device Circuit (IDC) for normally-open-contact fire alarm and supervisory devices. The module has a panel-controlled LED indicator. The MMF-300 can be used to replace M300 modules in existing systems.
MMF-300 APPLICATIONS
Use to monitor a zone of four-wire smoke detectors, manual fire alarm pull stations, waterflow devices, or other normallyopen dry-contact alarm activation devices. May also be used to monitor normally-open supervisory devices with special supervisory indication at the control panel. Monitored circuit may be wired as an NFPA Style B (Class B) or Style D (Class A) Initiating Device Circuit. A 47K ohm End-of-Line Resistor (provided) terminates the Style B circuit. No resistor is required for supervision of the Style D circuit. |
|
|
|
|
|
|
* Click here more Information |
|
|
|
|
^ Top |
|
|

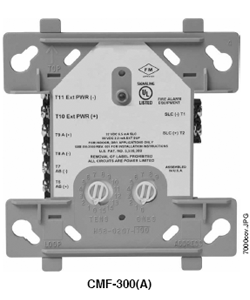

CMF-300(A)
Control Module |
|
Addressable Devices |
|
General |
The CMF-300(A) Addressable Control Module provides Fire•Lite intelligent control panels a circuit for Notification Appliances (horns, strobes, etc.). Addressability allows the CMF-300(A) to be activated through panel programming, on a select (zone or area of coverage) basis.
LiteSpeed™ is a communication protocol developed by Fire•Lite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion.
If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs. |
|
Features |
» |
Built-in type identification automatically identifies these devices to the control panel. |
» |
Internal circuitry powered directly by two-wire SLC loop. The CMF-300(A) module requires power (for horns,
strobes, etc.). |
» |
Integral LED “blinks” green each time a communication is received from the control panel and turns on steady red when activated. |
» |
High noise immunity (EMF/RFI). |
» |
The CMF-300(A) may be used to switch 24-volt NAC power. |
» |
Wide viewing angle of LED. |
» |
SEMS screws with clamping plates for wiring ease. |
» |
Direct-dial entry of address: 01– 159 for MS-9600 series panels, 01 – 99 on MS-9200UDLS and MS 9050UD. |
|
Applications
The CMF-300(A) is used to switch 24 VDC audible/visual power. |
|
|
Construction |
» |
The face plate is made of off-white heat-resistant plastic. |
» |
Controls include two rotary switches for direct-dial entry of address setting. |
» |
The CMF-300(A) is configured for a single Class B (Style Y) or Class A (Style Z) Notification Appliance Circuit. |
|
|
|
|
|
* Click here more Information |
|
|
|
|
^ Top |
|
|
I300(A)
Fault Isolator Module |
|
Addressable Devices |
|
General |
The Fire•Lite I300(A) Fault Isolator Module is used with Fire•Lite’s addressable fire alarm control panels (FACPs) to protect the system against wire-to-wire short circuits on the SLC loop. The I300(A) should be placed between each device on the SLC loop to isolate a short-circuit problem between the modules. It is required for true Style 7 operation so that other devices
can continue to operate normally in the event of a short-circuit on the SLC . |
|
Features |
» |
Powered by SLC loop directly, no external power required. |
» |
Mounts in standard 4.0" (10.16 cm) square, 2.125" (5.398 cm) deep junction boxes. |
» |
Integral LED blinks to indicate normal condition. Illuminates steady when short circuit condition is detected. |
» |
High noise (EMF/RFI) immunity. |
|
|
Applications |
The Fault Isolator Modules should be spaced between groups of sensors in a loop to protect the rest of the loop. Use to isolate short circuit problems within a section of a loop so that other sections can continue to operate normally. The I300(A) supports a maximum of 25 devices in-between isolators, except when using relay bases.
|
|
|
Note
|
: |
LOADS PER RELAY BASE AND ISOLATORS/ISOLATOR |
Bases |
: |
The maximum number of addressable devices between isolators (or B224BI isolator bases) is 25 devices. |
|
|
|
|
B224RB relay bases draw more current than other intelligent devices. When calculating the 25-device maximum, B224RB represents 2.5 DEVICES; see example on page 2.
NOTE: ON MAXIMUM NUMBER OF DEVICES: See the SLC Manual (51309) for information on loss of addresses due to current limitations. Each module or base added reduces the capacity of address positions in an SLC. All SLCfield devices must have been purchased after February 1995 to meet the aforementioned requirements. If the SLC field devices were purchased prior to February 1995, each ISO-X used reduces the capacity of an SLC
by two address positions. Requirements differ as applied to relay bases; see note above. |
|
|
|
|
|
|
* Click here more Information |
|
|
|
