ABC TYPE FIRE EXTINGUISHER |
|
|
|
Store Pressure ( Multipurpose Fire Extinguisher ) "Mahavir Brand" bis approved isi mark abc type Fire extinguisher covers a,b,c class of fires which include papers, wood, cloth rubber, plastic & inflammable liquid like oil, petrol, paints, petrochemical product, resins, gases in the compressed from acetylenes, lpg & cng, electrical & sophisticated electrical equipment. |
|
|
Capacity (in Kg) |
500 gms |
1 |
2 |
5 |
10 |
IS Specification |
13849 |
13849 |
13849 |
13849 |
13849 |
Jet Range ( In Mtrs.) |
1.5 |
2-4 |
2-4 |
4-5 |
<6 |
Discharge Time (In Sec.) |
6-8 |
8-10 |
8-10 |
15-20 |
23-30 |
Min. Discharge Quantity |
85% |
85% |
85% |
85% |
85% |
Seal of Aproval |
ISI |
ISI |
ISI |
ISI |
ISI |
Hydraulic Test Pressure of Cylinder (Kg./Cm2) |
30 |
30 |
30 |
30 |
30 |
Discharge Outlet |
Direct Nozzle |
Direct Nozzle |
Direct Nozzle |
Direct Nozzle |
Direct Nozzle |
|
|
|
|
|
|
Automatic Modular Fire Extinguisher A B C E Class Of Fire |
|
|
|
Contents : Automatic ABC Dry Power, Dry Chemical Powder, FM-200 etc. Operation : When heat from an uncontrolled fire increases to a pre-set temperature of the unit, the fusible link releases discharging the extiinguishing agent. The releases temperature of the extinguisher (fusible link) can be preset at works ranging from 570c/680c/790c/930c/1400c and so on. They require no external source of energy and it can be operated electrically, manually or mechanically for their operation. (Optionally).
Applicability for General Occupancies & Storage Areas like : Storage of Flammabble & Combustible Liquids & Gases, Chemicals, Grain Mill Products, Solids Fuels, Records, Libraries, Museums, Showrooms, Shops, Offices, Residential premises, Workshop, Garages, Paint Booths, Theatre, Radio Rooms TV Stations etc. |
|
|
|
|
|
|

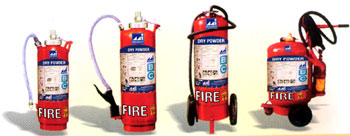

Dry Chemical Powder Type Fire Extinguisher For "B" & "C" Class Of Fire |
|
|
|
MAHAVIR BRAND" BIS APPROVED ISI MARK DRY CHEMICAL FIRE EXTINGUISHER CONTROL B & C CLASS OF FIRE LIKE OIL, PETROL AND PETROLEUM PRODUCT, SOLVENT, PAINTS, VARNISHES, CHEMICAL LIQUIDS, ALL FLAMMABLE LIQUIDS & ELECTRICAL FIRE & GAS FIRE, ETC. |
|
|
|
Technical Specification |
|
Capacity (In Ltr.) |
5 |
10 |
25 |
50 |
75 |
IS Specification |
2171 |
2171 |
10658 |
10658 |
10658 |
Jet Range (In Mtrs.) |
4-5 |
<6 |
<6 |
8-10 |
10-12 |
Discharge Time (In Sec.) |
15-20 |
25-30 |
25-30 |
40-50 |
50-60 |
Min. Discharge Quantity |
90% |
90% |
85% |
85% |
85% |
Seal of Approval |
ISI |
ISI |
- |
- |
- |
Hydraulic Test Pressure of Cylinder (Kg./Cm2) |
30 |
30 |
30 |
30 |
30 |
|
|
|
|
|
|

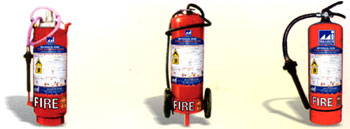

Mechanical Foam (Afff) Fire Extinguisher For "A" & "B" Class Of Fire |
|
|
|
"MAHAVIR BRAND" MECANICAL FOAM TYPE FIRE EXTINGUISHER IS DESIGNED TO EXTINGUISH A & B CLASS OF FIRE INVOLVING WOOD, PAPER, CLOTH, TEXTILE, STATIONERY & VERY SPECIAL BLANKET EFFECT ON FLAMMABLE & VOLATILE LIQUIDS LIKE OIL, PETROL, KEROSENE, SOLVENT & CHEMICAL, WAX, RESINS ETC. |
CAUTION : NOT TO BE USED ON ELECTRICAL FIRES |
|
|
|
|
Technical Specification |
MECH. FOAM |
MECH. FOAM |
MECH FOAM STORE PRESSURE |
Capacity (in Ltr.) |
9 |
50 |
9 |
IS Specification |
10204 |
13386 |
15397 |
Jet Range (in Mtrs.) |
<6 |
10 |
<6 |
Discharge Time (In Sec.) |
60-90 |
60-180 |
25-60 |
Min.Discharge Quantity |
95% |
90% |
90% |
Hydraulic Test Pressure of Cylinder (Kg./Cm2) |
30 |
30 |
30 |
|
|
|
|
|
|
|

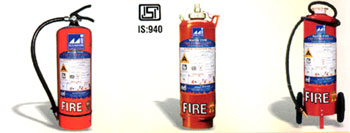

Water Co2 Type Fire Extinguisher For "A" Class Of Fire |
|
|
|
"Mahavir brand" is approved isi mark abc type fire extinguisher & water store pressure type provides safety against "a" class of the fire which involves material like wood, paper, cloth, plastics & fiber, rubber etc. |
CAUTION : NOT TO BE USED ON ELECTRICAL FIRES |
|
|
|
|
Technical Specification |
Water CO2 Store Pressure |
Water CO2 |
Water CO2 |
Capacity (In Ltr.) |
9 |
9 |
50 |
IS Specification |
6234 |
940 |
13385 |
Jet Range (In Mtrs.) |
<6 |
<6 |
10 |
Discharge Time (In Sec.) |
60-90 |
60-120 |
60-180 |
Min. Discharge Quantity |
95% |
95% |
90% |
Seal of Approval |
ISI |
ISI |
- |
Hydraulic Test Pressure of
Cylinder (Kg./Cm2) |
30 |
30 |
30 |
|
|
|
|
|
|
|
Carbon Dioxide Type Fire Extinguisher For "B" & "C" Class Of Fire |
|
|
|
"MAHAVIR BRAND" CARBON DIOXIDE TYPE FIRE EXTINGUISHER ARE SUITABLE FOR B & C CLASS OF FIRES INVOLVING ALL FLAMMABLE LIQUIDS, GASES, LIVE & DELICATE, MACHINERY FIRES, ELECTRICAL & SOPHISTICATED ELECTRONIC EQUIPMENTS FIRES TRASNFORMER & SWITCH GEAR FIRE. THIS EXTINGUISHER IS APPROVED BY EXPLOSIVE DEPARTMENT, GOVT. OF INDIA, NAGPUR. |
THE NEW CO2 SQUEEZE GRIP TYPE PORTABLE FIRE EXTINGUISHER ALSO AVAILABLE |
|
|
|
|
Specification |
Capacity (In Kg.) |
2 |
3 |
4.5 |
6.5 |
9 |
22.5 |
IS Specification |
2878 |
2878 |
2878 |
2878 |
2878 |
2878 |
Jet Range (In Mtrs.) |
2 |
2 |
2.5-3 |
2.5-3 |
2.5-3 |
2.5-3 |
Discharge Time (In Sec.) |
14-16 |
16-18 |
20-24 |
25-30 |
30-35 |
50-60 |
Min. Discharge Quantity |
98% |
98% |
98% |
98% |
98% |
98% |
Hydraulic Test Pressure of Cylinder (Kg./Cm2) |
250 |
250 |
250 |
250 |
250 |
250 |
Working Pressure (Kg./Cm2) |
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
|
|
|
|
