Hydrant System |
| |
| Overview |
 |
A well designed and a well laid out Hydrant System forms the backbone of the entire fire fighting system.
Hydrant Fire Protection System is designed to fight fire of huge proportions, in all classes of risks. It is designed to be in operation even if a part of the affected structure collapses. This system consists of yard hydrant piping systems, internal hydrant piping, hose reel drums, hose cabinets, internal and external hydrant valves and set of pumps. |
|
|
| |
| Target Industry Segment |
|
Commercial Buildings, Industries, Power Plants, Refineries, Residential Apartments, Theatres, Telephone Exchanges |
| |
| System Description |
|
The Hydrant System typically comprises of Fire Water Source, Pumps (Diesel, Electrical), Control Panel, System Piping, Control Valves and Hydrant Valves with Accessories. |
| |
| Standards & Compliance |
|
| NBC, NFPA, TAC, IS, FM and Local Fire Authorities |
| |
| Alliances & Partners |
|
| All materials required for this system are available indigeneously. |
| |
|
| ^ Top |
| |
| Fire Hose |
| |
| Pyroprotect |
| » |
UL listed |
| » |
Conforming to BS 6391 Type 3 ,UL 19,prEN 1924, IS 636 Type B |
| » |
ISI marked |
| » |
Internally Rubber lining combined with closely woven polyester fibre. |
| » |
Wrap made of multi ply high tenacity fibres |
| » |
Synthetic rubber compound specially formulated for abrasion, Flexibility |
| » |
Chemical resistance, and protection against aging |
| » |
Smooth inner lining surface with very low friction loss |
| » |
Ribbed for Hose protection and easy handling. |
| » |
Available indifferent colour REDDISH BROWN,BLUE,YELLOW,BLACK |
|
 |
|
|
| |
Product
Code No. |
Sizes |
Working
Pressure PSI |
Burst
Pressure PSI |
| FH-PY-25 |
1” |
245 |
710 |
| FH-PY-38 |
1 ½” |
245 |
710 |
| FH-PY-45 |
1 ¾” |
245 |
710 |
| FH-PY-50 |
2” |
245 |
710 |
| FH-PY-63 |
2½” |
245 |
710 |
| FH-PY-70 |
2 ¾” |
245 |
710 |
| FH-PY-76 |
3” |
217 |
575 |
| FH-PY-100 |
4” |
217 |
500 |
| FH-PY-150 |
6” |
100 |
500 |
|
|
| |
| * Click here more Information |
|
 |
|
| |
|
| ^ Top |
| |
| |
| Premier |
 |
| » |
UL Listed |
| » |
Conforming to BS 6391 Type 1 ,UL 219, prEN 1924,DIN 14811, |
| » |
IS 636 Type A |
| » |
ISI marked |
| » |
Jacket is made up of 100% polyester for extra strength |
| » |
Special quality EPDM rubber as internal lining to with stand heat
and polluted water |
| » |
Heat and abrasion resistance. |
|
|
|
| |
Product
Code No. |
Sizes |
Working
Pressure PSI |
Burst
Pressure PSI |
| FH-PR-38 |
1 ½” |
205 |
710 |
| FH-PR-45 |
1¾” |
205 |
710 |
| FH-PR-50 |
2” |
205 |
710 |
| FH-PR-63 |
2 ½” |
175 |
640 |
| FH-PR-70 |
2¾” |
175 |
640 |
| FH-PR-76 |
3” |
145 |
500 |
| FH-PR-100 |
4” |
145 |
500 |
| FH-PR-125 |
5” |
100 |
425 |
| FH-PR-150 |
6” |
100 |
|
|
|
| |
|
| ^ Top |
| |
| Fire Chief |
| » |
Conforming to IS 636 Type A |
| » |
ISI marked |
| » |
Rubberised fabric reinforced rubber lined (RRL)Fire Hose. |
| » |
Jacket is made up of 100% Synthetic Yarn for extra strength |
| » |
RRL alone can with stand 100 PSI pressure |
| » |
Heat and abrasion resistance. |
|
 |
|
|
| |
Product
Code No. |
Sizes |
Working
Pressure PSI |
Burst
Pressure PSI |
| FH-FC-38 |
1 ½” |
205 |
570 |
| FH-FC-50 |
2” |
205 |
570 |
| FH-FC-63 |
2 ½” |
205 |
570 |
| FH-FC-70 |
2¾” |
205 |
|
|
|
| |
|
| ^ Top |
| |

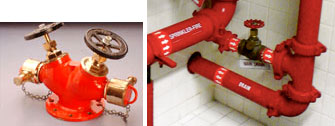

| Landing Valves |
| |
| Oblique type Landing Valve |
 |
|
|
| |
| ISI Marked |
|
Product Code
No. |
Description |
Inlet Sizes |
Outlets |
Material Of
Construction |
| LV-OT-38 |
1 ½” (38mm) Size |
Flanged inlet as per ANSI
Flanged inlet as per PN16
BSP Male Threaded inlet
NPT Male Threaded inlet |
2 ½” Female
Instantaneous
2 ½”NH(M)
2 ½”NST(M)
2 ½” BSP (M) |
Gun Metal
Aluminium Alloy
S.S |
| LV-OT-63 |
2 ½”(63mm) Size |
| LV-OT-75 |
3” (75mm) Size |
|
|
| |
|
| ^ Top |
| |
| Double Outlet Type Landing Valve |
 |
|
|
| |
| ISI Marked |
|
| Product Code No. |
Description |
| LV-DOT-01 |
Made in Gun Metal 4''NB Flanged inlet as per ANSI |
| LV-DOT-02 |
Made in Gun Metal 4''NB Flanged inlet as per Pn16 |
|
|
| |
|
| ^ Top |
| |
| Dry Rise Equipments |
| |
| Way Inlet Breeching |
 |
| » |
Body |
Gun Metal or Aluminium Alloy or Cast Iron |
| » |
Inlet |
Two Instantaneous with NRV |
| » |
Outlet |
4” Flanged |
| » |
Working Pressure |
150 PSI |
| » |
Test Pressure |
325 PSI |
|
|
|
| |
| Product Code No. |
Description |
| DRE-2W-01 |
Two way inlet breeching made in Gun Metal |
| DRE-2W-02 |
Two way inlet breeching made in Aluminium alloy |
| DRE-2W-03 |
Two way inlet breeching made in SGI/CI |
|
|
| |
|
| ^ Top |
| |
| Way Inlet Breeching |
| » |
Body |
Gun Metal or Aluminium Alloy or Cast Iron |
| » |
Inlet |
Four Instantaneous with NRV |
| » |
Outlet |
6” Flanged |
| » |
Working Pressure |
150 PSI |
| » |
Test Pressure |
325 PSI |
|
 |
|
|
| |
| Product Code No. |
Description |
| DRE-4W-01 |
Four way inlet breeching made in Gun Metal |
| DRE-4W-02 |
Four way inlet breeching made in Aluminium alloy |
| DRE-4W-03 |
Four way inlet breeching made in SGI/CI |
|
|
| |
|
| ^ Top |
| |
| Air Releasing Valve |
| |
 |
| » |
Body |
Copper Alloy |
| » |
Inlet Connection |
Threaded male Connection |
|
|
|
| |
| Product Code No. |
Description |
| DRE-ARV-01 |
Inlet Connection with ¾” BSP |
| DRE-ARV-02 |
Inlet Connection with 1” BSP |
|
|
| |
|
| ^ Top |
| |
| Hose Reel |
| |
| Wall Mounting Type |
| » |
ISI Marked (IS:884) |
| » |
Side plate power Coated finish red. |
| » |
Threaded Inlet connection. |
| » |
Outlet connection for hose can be rotate for l eft and right direction. |
| » |
Waterways made Seamless trbing. |
| » |
Operating pressure: 150 PSI Max. |
| » |
Flow rate: 16GPM at 100 PSI. |
| » |
Fixed / Swinging Type |
|
 |
|
|
| |
Product
Code No. |
Description |
Hose Size |
Hose Length |
Hose reel Nozzle |
| HR-WM-01 |
Fixed Type |
3/4”
1” |
30 Meter
36 Meter |
Refer Codes
from above |
| HR-WM-02 |
Swinging type |
| HR-WM-03 |
Automatic type |
|
|
| |
|
| ^ Top |
| |
| Cabinets |
| |
| Model B |
 |
| » |
Suitable for storing 7.5 Mtr or 15 Mtr hoses & one Nozzle |
| » |
30” X 24” X 10” |
| » |
Light-weight |
| » |
Weatherproof |
| » |
Wall Mounted with M.S Stand |
| » |
Finished with P.O red colour |
|
|
|
| |
| Product Code No. |
Description |
| CA-HB-B-01 |
Made in FRP with wall mounted type |
| CA-HB-B-02 |
Made in FRP with Self Standing type |
| CA-HB-B-03 |
Made in 18 SWG CRCA Sheet with wall mounted type |
| CA-HB-B-04 |
Made in 18 SWG CRCA Sheet with Self Standing mounting type |
|
|
| |
|
| ^ Top |
| |
| Nozzles |
| |
| Short Branch Pipe |
| » |
ISI MARKED |
|
| » |
Inlet Connection |
2 ½” Male Instantaneous |
| » |
Outlet |
Solid Jet Nozzle |
| » |
Material |
Gun Metal or Aluminium alloy Or Stainless Steel |
| » |
Operating Pressure |
150 PSI Max. |
| » |
Finish |
Natural Polished |
|
 |
|
|
| |
| Product Code No. |
Description |
Available In Material |
| N-SB-01 |
With½” Outlet |
Gunmetal Aluminium Alloy S.S 304
S.S 316 |
| N-SB-02 |
With 5/8” Outlet |
| N-SB-03 |
With ¾” Outlet |
| N-SB-04 |
With 7/8” Outlet |
| N-SB-05 |
With 1” Outlet |
|
|
| |
|
| ^ Top |
| |
| Monitors |
| |
| Water Jet Monitor |
 |
| » |
Standpost Mounted |
| » |
Carbon Steel Water Ways |
| » |
Hot Dipped Galvanised |
| » |
Bronze Swivel joint with S.S ball Bearings |
| » |
Flanged Inlet |
| » |
Horizontal 360 & vertical +90 & -45 rotation. |
| » |
Max. Working Pressure 150PSI |
| » |
Locking Device for Horizontal and vertical position. |
| » |
Solid jet Nozzle |
|
|
|
| |
| Product Code No. |
Description |
Optional Nozzle In |
| M-WJM-01 |
500GPM @100 PSI With 2 1/2 ” Waterways |
Gun Metal
S.S
Aluminium Alloy |
| M-WJM-02 |
625GPM @100 PSI with 3” Waterways |
| M-WJM-03 |
750 GPM @100 PSI with 4 “Waterways |
| M-WJM-04 |
100 GPM @100 PSI with 4 “Waterways |
|
|
| |
| ^ Top |
